2500HD Grain Feeder

+ GST

The 2500HD Grain Feeder from Advantage Feeders provides reliable feed control and flexibility, making it ideal for mixed livestock operations including cattle, sheep, goats, and deer.

With a 51 bushel capacity, this feeder is well-suited for pasture or feedlot use, accommodating multiple stock classes while minimizing refill frequency and maximizing feed efficiency.

The 2500HD is perfect for use in multi-unit feedlots.

+ GST
Product Assembly Options:
No data was found
  • Feed capacity: 51 Bushels
  • Pasture (cattle / calves): 40 – 50 head
  • Feedlot (cattle): 30 – 35 head
  • Pasture (ewes / lambs): 200 – 250 head
  • Feedlot (ewes / lambs): 120 – 150 head

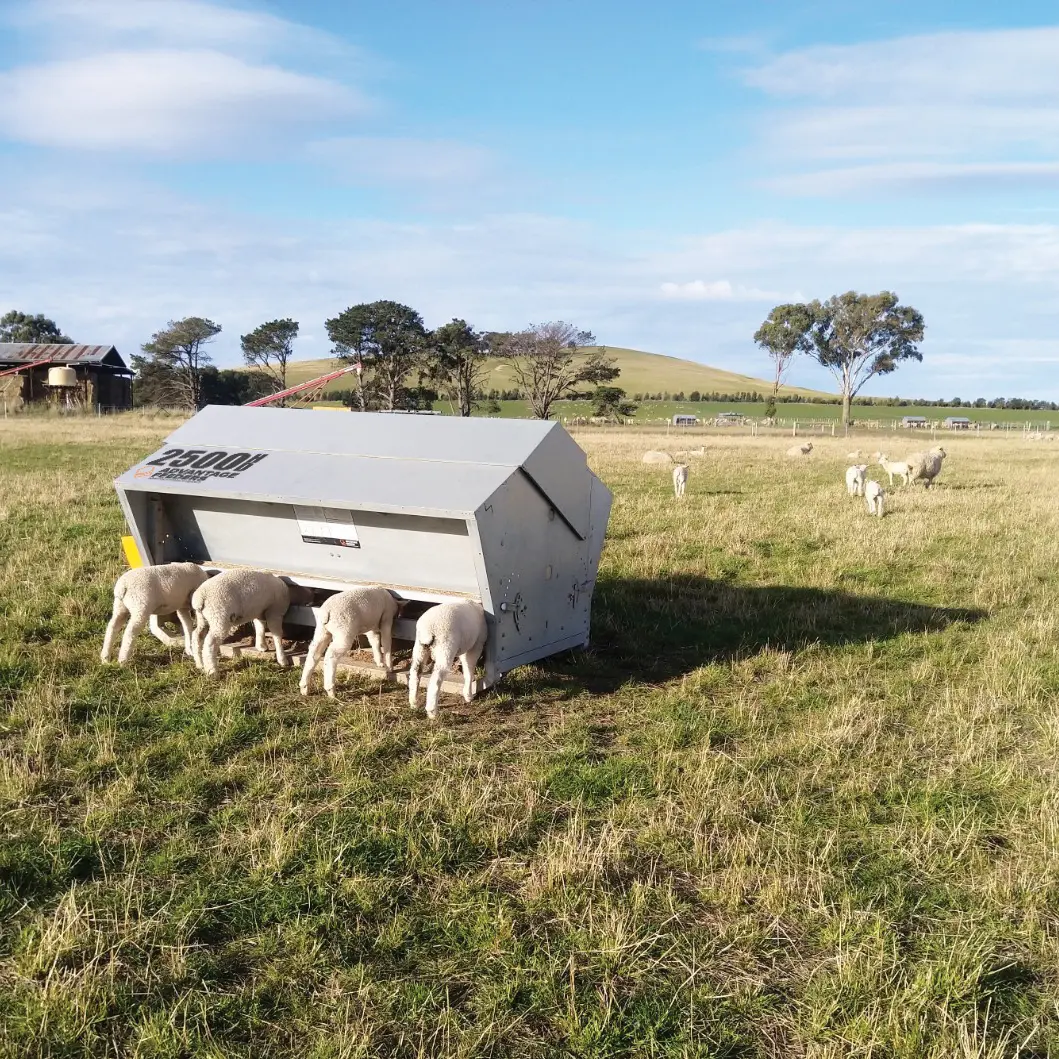

  • Ewes & lambs (creep feeding): 200 – 250 combined
  • Goats (pasture): 200 – 250 head
  • Deer (pasture): 120 – 150 head
  • Pigs: 120 – 150 head
  • Heavy-duty construction: Built to withstand rugged farm use
  • Adjustable height: Adjustable height settings for sheep, goats and extended cattle heights

3-way Restriction System

At the core of the 2500HD is Advantage Feeders’ precise 3‑way restriction system, which lets you control feed intake and encourage healthy feeding behavior while preventing waste.

The saliva restriction system requires stock to lick feed from a groove through the Adjuster Guard, naturally supporting a little and often feeding approach. This controls ration size, reduces overeating and bullying, reduces feed wastage, and ensures all animals have fair, controlled access.

Benefits of controlled feeding

  • Improve feed conversion efficiency
  • Support consistent weight gain
  • Reduce grain wastage and input costs
  • Maintain healthier rumen function

Dimensions & Weight

  • Overall Weight: 783 lb
  • Length: 8 ft
  • Width: 5.5 ft
  • Dimensions at Sheep Height: 8’ × 5.5’ × 4.7’
  • Dimensions at Cattle Height: 8’ × 5.5’ × 5.4’
  • Dimensions at Extended Cattle Height: 8’ × 5.5’ × 6’
  • Flat Pack Dimensions: 8’ × 3.8’ × 1’

Feed Capacity & Weight

  • Feed Volume: 396 imp gal
  • Feed Weight – Wheat/Lupins: 1.4 ton
  • Feed Weight – Barley/Pellets: 1.15 ton
  • Feed Weight – Oats: 0.9 ton

The 2500HD Grain Feeder combines durability, precision, and versatility for small to medium livestock operations. Upgrades such as the numbered Adjuster Guard Handle, Flow Assist system, Adjuster Lock, and strategically located cleaning tool and tube spanner storage make feeding easier and more efficient. Built tough, it features reinforced stainless-steel troughs and upper and lower adjusters, dual adjuster guards with housing when not in use, and hot-dip galvanized skids with SHS braces, a vertical center brace, anti-slip platform, and laser-cut corners for long-lasting stability and rust protection.

The feeder’s Z275 sheetmetal trough is angled for optimal feed flow and includes side wall bracing, gutters, and weather protection to keep feed dry and accessible. Adjustable feed heights accommodate different stock: 9.5” for sheep, 17” for cattle, and 25” for extended cattle height, with adjustable width tine guides, multiple adjuster braces, locking bolts, and a painted notch system for precise control. Farmers can easily monitor feed levels with four 3” sight glasses and volume stickers, while cleaning tools stored securely on the feeder make maintenance simple.

Optional add-ons such as a mineral attachment and calf or lamb creep feeding panels allow customization for your operation. With a 94” trough length, deep 4.5” feed depth, and ability to adjust feeder height in just 15 minutes, the 2500HD is flexible and practical. It also comes with a 5-year extended warranty, 30-day money-back guarantee, user guide, standard operating procedure, trial reports, and is available flat-packed or assembled, making it a reliable, high-performance feeder for sheep, cattle, and mixed stock operations.

Accessories

Check out our range of Advantage Feeders accessories for feeder assembly and management.

The Advantage Feeders Mineral Attachment is a purpose‑built livestock mineral feeder designed to provide loose lick and mineral supplements to stock without waste. It’s engineered to be versatile and easy to deploy across farm environments, with sturdy brackets included to hang the unit on gates, fences, posts, or directly onto Advantage Feeders equipment.
