Description
| Weight: | 1200lbs |
|
Dimensions:
|
12’0″ x 5’5″ x 4’9″ (LxWxH) |
| Feed Volume: | 51 bu |
| Feed weight – wheat/corn: | 1.5 tons |
| Feed weight – barley/pellets: | 1.3 tons |
| Feed weight – oats: | 1.1 tons |
| Tyre size: | 195/55R13C |
| Cattle: | 50 |
| Sheep: | 150 |
| Goats: | 150 |
- Reinforced stainless steel troughs
- Reinforced stainless steel upper adjusters
- Reinforced stainless steel lower adjusters
- 2x adjuster guards standard
- Adjuster guard housing when not in use

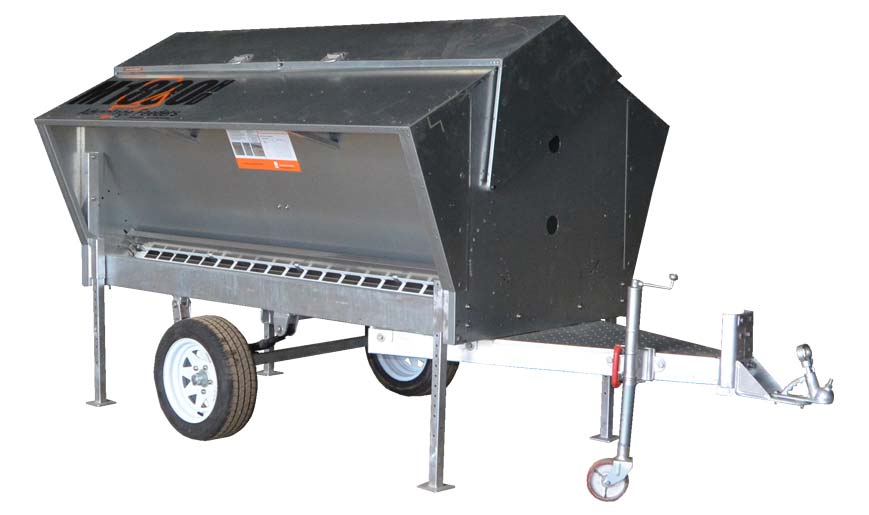

- 4x 1.5″ SHS stands
- High stability with hopper wholly over wheels
- Spring suspension
- Three axle height options
- Channel reinforced trough
- Z275 sheetmetal
- 45 degrees angled trough
- 4″ feed flow area
- Rain protection reinforcing
- Side wall bracing
- Channel roof pivot bracket
- 6x adjuster braces
- Dual tab adjuster braces
- 4x locking bolts on the lower adjusters
- Adjuster guard locking system
- Dual positioned adjuster guard for dusty feeds
- 4x 3″ round sight glasses
- Vertical side wall bracing for easy feed flow
- 2x volume stickers
- Adjuster feeder height in just 30 minutes
- Cleaning tool supplied
- Tube spanner supplied
- Secure housing for tools
- 2x new tyres
- Pivot up jockey wheel bracket
- Cast iron wheel on jockey wheel
- 2x safety chains supplied
- 94″ trough length
- Painted notch system on the adjusters
- Drop lock pin roof locking system
- Deep 4.5″ trough depth
- Gutters on side walls drain out of feeder
- Weather protection over the troughs
- Reinforced roof edges
- Mineral attachment option
- Calf creep feeding gate option
- Lamb creep feeding panel option
- Rubber mat option
- Standard operating procedure supplied
- User guide supplied
- Trial reports available
