5300HD

Categories: ,

Stronger, Last Longer, More control

  • Reinforced stainless steel parts
  • Precise 3 way saliva restriction system
  • Product weight : 930lbs

Description

Weight: 1345 lbs
Dimensions at cattle height : 12’0″ x 5’5″ x 7′ (LxWxH)
Dimensions at sheep height : 12’0″ x 5’5″ x 6’4″ (LxWxH)
Feed Volume: 107 bu
Feed weight – wheat/corn: 3.3 tons
Feed weight – barley/pellets: 2.7 tons
Feed weight – oats: 2.7 tons
Tyre size: 195/55R13C
Cattle: 50
Sheep:
150
Goats: 150
  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Reinforced stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard housing when not in use
  • 4x 2.4″ SHS skids
  • High stability with hopper wholly over skids
  • 2x 2.5″ SHS braces between the skids
  • Hot gal dipped skids
  • Vertical brace in the centre of the skids
  • Anti-slip platform between skids
  • Laser cut corners in skids to prevent rust
  • Channel reinforced trough
  • Z275 sheetmetal
  • 45 degrees angled trough
  • 4″ feed flow area
  • Rain protection reinforcing
  • Side wall bracing
  • Channel roof pivot bracket
  • 2x 8″Ă— 4″ RHS tine guides

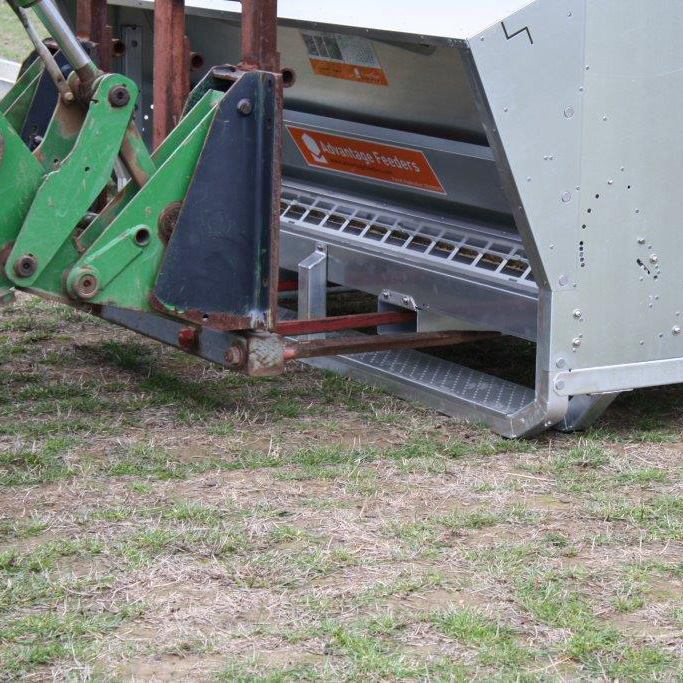

  • Adjustable width tine guides
  • 6x adjuster braces
  • Dual tab adjuster braces
  • 4x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 8x 3″ round sight glasses
  • Vertical side wall bracing for easy feed flow
  • 2x volume stickers
  • Adjust feeder height in just 15 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure housing for tools
  • 94″ trough length
  • Painted notch system on the adjusters
  • Drop lock pin roof locking system
  • Deep 4.5″ trough depth
  • Gutters on side walls drain out of feeder
  • Weather protection over the troughs
  • Reinforced roof edges
  • Mineral attachment option

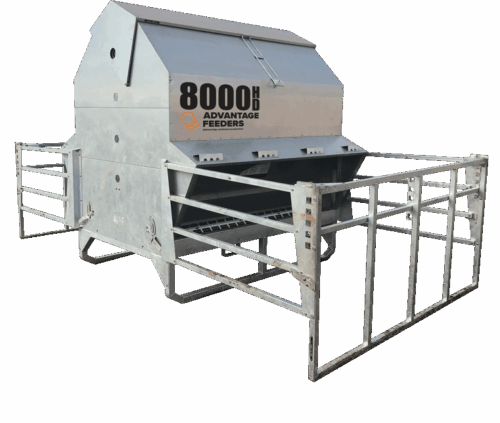

  • Calf creep feeding gate option
  • Lamb creep feeding panel option
  • Rubber mat option
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available
