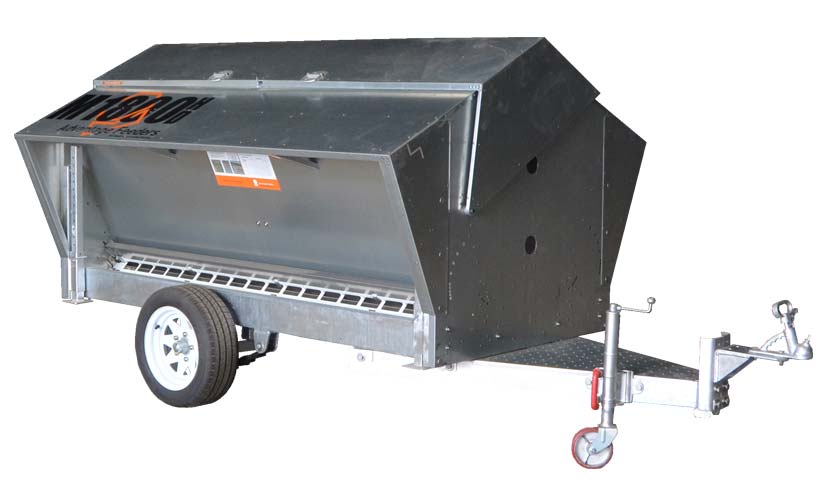

M2500HD

SKU: N/A Category:

Stronger, Last Longer, More control

  • Reinforced stainless steel parts
  • Precise 3 way saliva restriction system
  • Spring suspension
  • Tow at 60mph

This product is currently out of stock and unavailable.

Description

Weight: 1200lbs
Dimensions:
12’0″ x 5’5″ x 4’9″ (LxWxH)
Feed Volume: 51 bu
Feed weight – wheat/corn: 1.5 tons
Feed weight – barley/pellets: 1.3 tons
Feed weight – oats: 1.1 tons
Tyre size: 195/55R13C
Cattle: 50
Sheep: 150
Goats: 150
  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Reinforced stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard housing when not in use

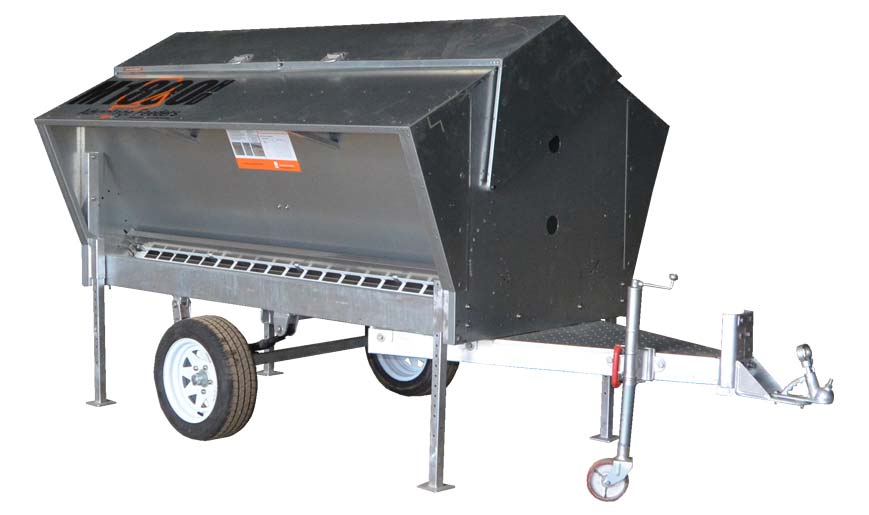

  • 4x 1.5″ SHS stands
  • High stability with hopper wholly over wheels
  • Spring suspension
  • Three axle height options
  • Channel reinforced trough
  • Z275 sheetmetal
  • 45 degrees angled trough
  • 4″ feed flow area
  • Rain protection reinforcing
  • Side wall bracing
  • Channel roof pivot bracket
  • 6x adjuster braces
  • Dual tab adjuster braces
  • 4x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 4x 3″ round sight glasses
  • Vertical side wall bracing for easy feed flow
  • 2x volume stickers
  • Adjuster feeder height in just 30 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure housing for tools
  • 2x new tyres
  • Pivot up jockey wheel bracket
  • Cast iron wheel on jockey wheel
  • 2x safety chains supplied
  • 94″ trough length
  • Painted notch system on the adjusters
  • Drop lock pin roof locking system
  • Deep 4.5″ trough depth
  • Gutters on side walls drain out of feeder
  • Weather protection over the troughs
  • Reinforced roof edges
  • Mineral attachment option
  • Calf creep feeding gate option
  • Lamb creep feeding panel option
  • Rubber mat option
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available

Additional information

Heights

Sheep Height, Cattle Height, Extended Cattle Height
